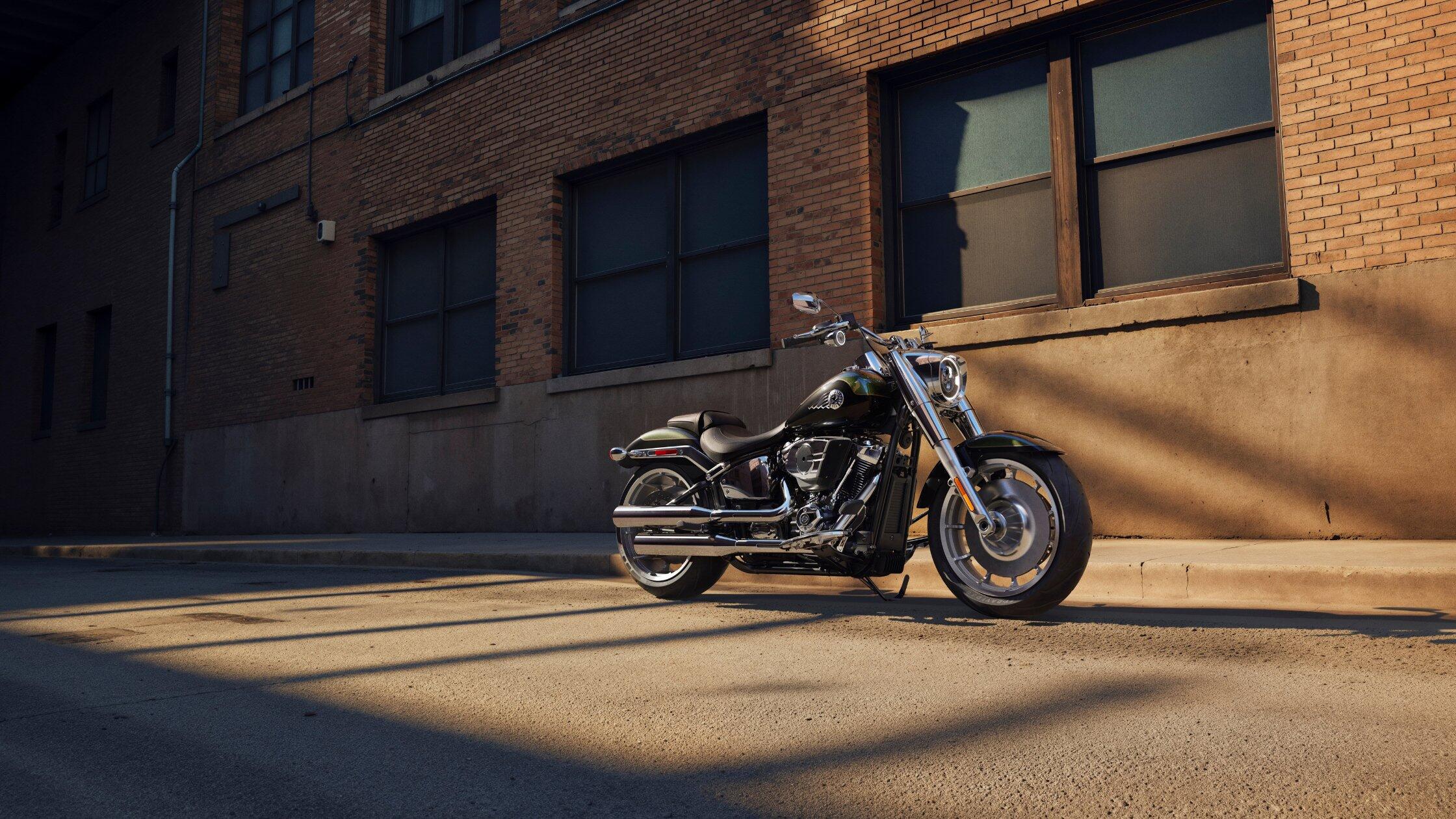

The 2026 Harley-Davidson® Fat Boy® combines a Milwaukee-Eight® 117 Custom engine, wide-profile Michelin® tires, and integrated rider safety systems within a low-slung cruiser platform. The motorcycle uses a long wheelbase, a low seat height, and a large-displacement V-twin engine to support highway cruising, low-speed maneuvering, and stable handling characteristics. Harley-Davidson® equips the model with a 6-speed Cruise Drive® transmission, LED lighting components, electronic rider aids, and a digital-analog instrumentation system. The 2026 Harley-Davidson® Fat Boy® maintains a heavy cruiser configuration through its 240 mm rear tire, machined Lakester cast aluminum wheels, and hidden rear suspension layout. The specifications and technical systems emphasize torque delivery, chassis stability, rider control, and mechanical durability.
Milwaukee-Eight® 117 Custom Engine Configuration
The 2026 Harley-Davidson® Fat Boy® uses the Milwaukee-Eight® 117 Custom engine with a displacement of 117 cubic inches, equivalent to 1,923 cc. The engine configuration uses a 4.075-inch bore and a 4.5-inch stroke. Harley-Davidson® rates the compression ratio at 10.3:1. The engine architecture uses pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder.
The powertrain produces 126 ft-lb of torque at 3,000 rpm and 103 horsepower at 4,800 rpm. The engine output supports strong acceleration in lower and middle RPM ranges. The torque-focused calibration aligns with the Fat Boy® platform’s heavyweight cruiser design. Harley-Davidson® tested torque output using the J1349 standard.
Fuel delivery comes through Electronic Sequential Port Fuel Injection. This fuel system meters fuel directly for improved throttle consistency and combustion management. Harley-Davidson® recommends 91-octane fuel or higher for engine operation. The intake system uses a Helix-style air cleaner designed to support airflow into the Milwaukee-Eight® engine assembly.
The exhaust system uses a 2-into-2 staggered layout with a catalyst integrated into the muffler assembly. The lubrication system uses a pressurized dry-sump design with an oil cooler. This configuration separates oil storage from the crankcase and supports temperature management during extended operation.
Transmission and Drivetrain Engineering
Harley-Davidson® equips the 2026 Harley-Davidson® Fat Boy® with a 6-speed Cruise Drive® transmission. The transmission ratios support acceleration in lower gears and reduced engine rpm during highway operation. The first-gear overall ratio measures 9.311. Second gear measures 6.454. Third gear measures 4.793. Fourth gear measures 3.882. Fifth gear measures 3.307. Sixth gear measures 2.79.
The drivetrain uses a chain-driven primary system with a 34/46 ratio. Final drive operation uses a belt system with a 32/66 ratio. The belt-drive arrangement reduces drivetrain noise and minimizes maintenance requirements compared to chain-driven final-drive systems.
The clutch system uses a mechanical 10-plate wet clutch with assist and conventional operation. This clutch configuration supports smooth engagement and controlled power transfer between the engine and transmission. The drivetrain components align with the engine’s torque output and support consistent operation during highway cruising and lower-speed riding conditions.
Long-Wheelbase Cruiser Dimensions
The 2026 Harley-Davidson® Fat Boy® measures 93.1 inches in overall length. Overall width measures 40 inches, while overall height measures 44.1 inches. The motorcycle uses a 65-inch wheelbase. The extended wheelbase contributes to straight-line stability and supports the wide rear-tire configuration.
Harley-Davidson® specifies a laden seat height of 25.9 inches and an unladen seat height of 26.6 inches. The low seat positioning places the rider closer to the chassis and lowers the motorcycle’s center of gravity. Static ground clearance measures 4.9 inches.
The steering geometry uses a 30-degree rake angle and a 32-degree fork angle. The trail measures 4.1 inches. This geometry supports predictable steering response while maintaining the handling characteristics expected from a heavyweight cruiser platform.
The 2026 Harley-Davidson® Fat Boy® has a running-order weight of 694 pounds and a shipped weight of 668 pounds. The Gross Vehicle Weight Rating measures 1,175 pounds. Gross Axle Weight Rating measures 450 pounds at the front and 760 pounds at the rear.
Chassis Structure and Suspension Systems
The frame assembly uses mild steel tubular construction with a rectangular-section backbone. Harley-Davidson® integrates stamped, cast, and forged junctions throughout the chassis structure. The frame assembly uses MIG welding and forged aluminum fender supports.
The swingarm uses mild-steel tubular sections with a stamped cross-member and forged axle junctions. The assembly includes a removable belt spacer and MIG-welded construction. The chassis configuration supports the motorcycle’s large rear wheel and wide tire dimensions.
The front suspension uses a dual-bending valve 49 mm telescopic fork with aluminum fork triple clamps and dual-rate springs. Harley-Davidson® also incorporates “beer can” fork covers into the frontend styling. Front suspension travel measures 5.1 inches.
The rear suspension uses a hidden free-piston coil-over monoshock with a 43 mm stroke and hydraulic preload adjustment. Rear suspension travel measures 3.4 inches.
Lakester Wheels and Michelin® Tire Specifications
The 2026 Harley-Davidson® Fat Boy® uses Michelin® Scorcher 11 tires at both the front and rear. The front tire specification measures 160/60R18 70V BW. The rear tire specification measures 240/40R18 79V BW. The 240 mm rear tire contributes to traction, rear-end stability, and the motorcycle’s wide-profile appearance.
Harley-Davidson® equips the model with machined Lakester cast-aluminum wheels. The front wheel measures 18 inches in diameter and 4.5 inches in width. The rear wheel measures 18 inches in diameter and 8 inches in width.
The wheel and tire dimensions influence handling characteristics, steering effort, and stability during acceleration. The wide rear-wheel assembly also affects the motorcycle’s visual proportions and stance geometry.
Brake Components and Cornering Control Systems
The braking system uses a 4-piston fixed front caliper and a 2-piston floating rear caliper. The front brake rotor measures 11.8 inches in diameter with a thickness of 0.2 inches. The rear brake rotor measures 11.5 inches in diameter with a thickness of 0.23 inches. Harley-Davidson® uses silver-split 7-spoke floating rotors at both ends.
The Anti-lock Braking System comes standard on the 2026 Harley-Davidson® Fat Boy®. The ABS system assists in maintaining wheel rotation during hard-braking situations. The motorcycle also includes Cornering Enhanced Anti-lock Braking System functionality. This system accounts for lean angle during braking input.
Harley-Davidson® includes a Traction Control System and Cornering Enhanced Traction Control System. These systems manage rear-wheel traction during acceleration and changing surface conditions. The motorcycle also uses Drag-torque Slip Control System functionality and Cornering Drag-Torque Slip Control System capability. These systems help manage rear-wheel slip during aggressive downshifts or sudden throttle reduction.
Tire Pressure Monitoring System functionality is also included. The TPMS system provides tire-pressure information through the motorcycle’s instrumentation display.
Electrical Hardware and Charging Capacity
The 2026 Harley-Davidson® Fat Boy® uses a sealed absorbed glass mat battery rated at 12 volts and 17.5 Ah. The battery provides 310 cold-cranking amps at 0°F. The sealed AGM configuration minimizes maintenance requirements and supports consistent starting performance.
The charging system uses a three-phase 48-amp configuration. Harley-Davidson® rates charging output at 364 watts at 13 volts and 900 rpm. Maximum output measures 624 watts at 13 volts and 2,000 rpm.
The starting system uses a 1.6 kW electric starter with solenoid-shift starter motor engagement. This arrangement supports reliable engine starting for the large-displacement Milwaukee-Eight® platform.
The motorcycle also includes a USB Type-C power outlet with a 5V output rated at 2.4 amps. This outlet supports charging compatibility for portable electronic devices.
LED Lighting and Instrument Display Technology
The 2026 Harley-Davidson® Fat Boy® uses a complete LED lighting configuration. The headlamp assembly includes LED low-beam and high-beam functionality with signature position lighting. The rear stop, tail, and turn signals use bullet-style LED components. Front and rear turn signals also use LED bullet-style assemblies.
The instrument cluster centers around a 5-inch analog speedometer with integrated digital information displays. The display provides gear position indication, odometer information, fuel level data, ride-mode status, traction-control status, ABS indication, TPMS information, cruise-control status, clock display, trip information, fuel range estimation, and tachometer indication.
The instrumentation system combines analog readability with integrated digital functionality. Harley-Davidson® designed the display layout to provide operational data without requiring a full infotainment system.
The 2026 Harley-Davidson® Fat Boy® does not include onboard navigation, Bluetooth® connectivity, headset integration, FM or AM radio functionality, speaker systems, or touchscreen infotainment equipment. The absence of integrated infotainment components maintains a simplified cockpit configuration focused on operational instrumentation.
Fuel Capacity and Operational Efficiency
The 2026 Harley-Davidson® Fat Boy® uses a 5-gallon fuel tank with a reserve fuel warning capacity of 1 gallon. The motorcycle’s estimated fuel economy measures 47 mpg under estimated city and highway testing conditions.
Oil capacity with filter measures 5 quarts. Transmission fluid capacity measures 1 quart, while primary chaincase capacity measures 1.43 quarts. These capacities support maintenance scheduling and long-distance operational planning.
The motorcycle does not use liquid cooling and lists coolant capacity as not applicable. The engine relies on its oil-cooling and air-cooled design characteristics for temperature management.
