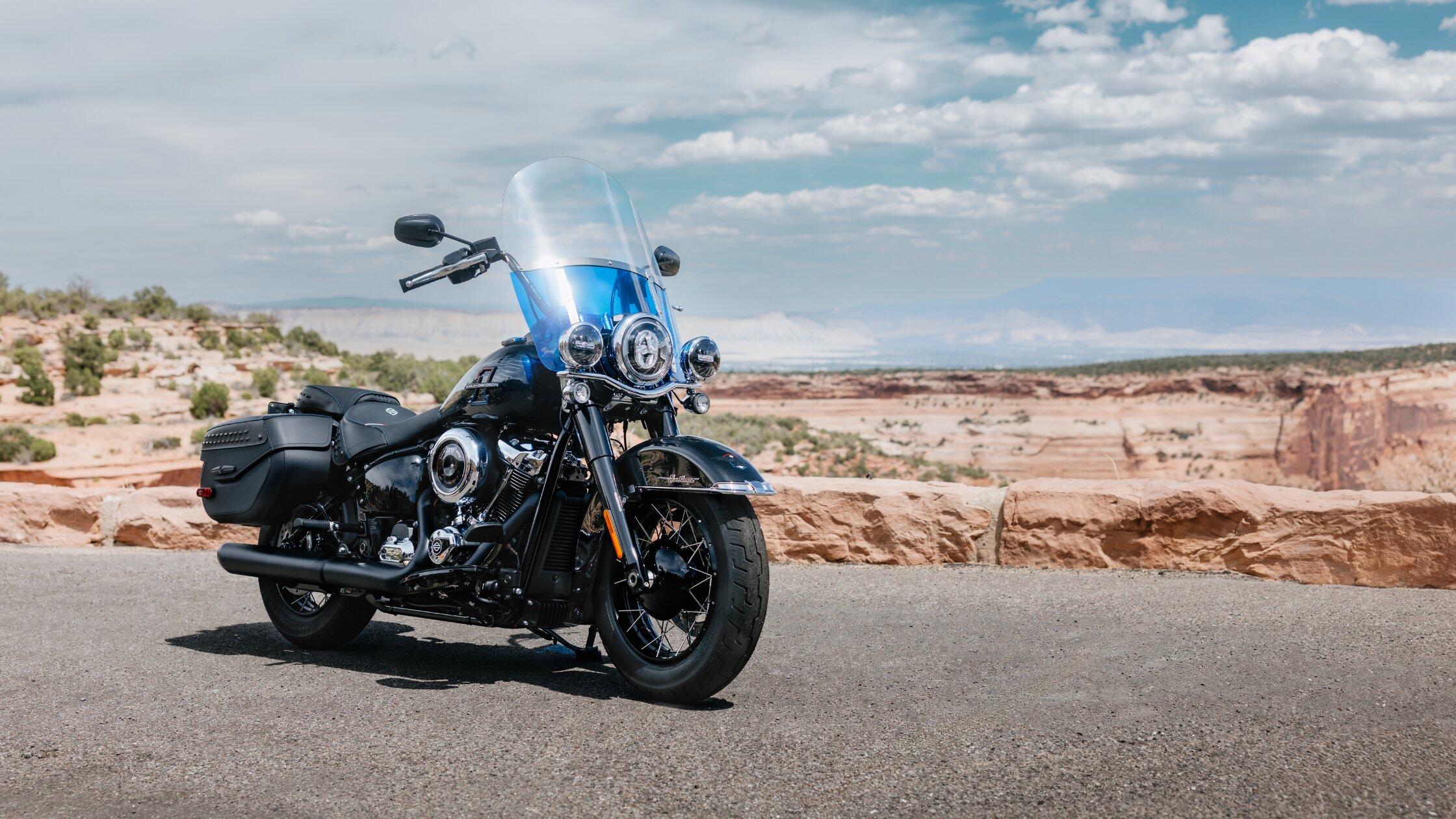

The 2026 Harley-Davidson® Heritage Classic combines a large-displacement Milwaukee-Eight® engine, Softail® chassis architecture, rider-assist systems, LED lighting, and touring-focused functionality in a cruiser platform designed for long-distance use and urban riding. The motorcycle uses the Milwaukee-Eight® 117 Classic engine paired with a 6-Speed Cruise Drive® transmission and belt final drive. Standard equipment includes Anti-lock Braking System, traction control, drag-torque slip control, tire pressure monitoring, cruise control, LED auxiliary lighting, and a digital rider information display integrated into a 5-inch analog speedometer. The 2026 Harley-Davidson® Heritage Classic also incorporates a hidden rear monoshock suspension system, cast aluminum wheels, and a low seat height intended to improve rider accessibility and long-duration comfort.
Milwaukee-Eight® 117 Engine Configuration
The 2026 Harley-Davidson® Heritage Classic uses the Milwaukee-Eight® 117 Classic engine with a displacement of 117 cubic inches, or 1,923 cc. The engine features a bore of 4.075 inches and a stroke of 4.5 inches. Harley-Davidson® pairs this displacement with a 10.3:1 compression ratio to support low-rpm torque production and consistent acceleration across varying riding conditions.
The engine uses a pushrod-operated overhead valve design with hydraulic self-adjusting lifters and four valves per cylinder. This configuration reduces routine valve maintenance while supporting efficient airflow and combustion. Electronic Sequential Port Fuel Injection manages fuel delivery to improve throttle response and combustion consistency during acceleration and highway cruising.
The output is rated at 120 ft-lb of torque at 2,500 rpm and 98 horsepower at 4,600 rpm. The torque curve emphasizes low-speed pulling power, which supports loaded touring operation, two-up riding, and controlled acceleration from lower engine speeds. The engine also uses a pressurized dry-sump lubrication system equipped with an oil cooler to help regulate operating temperatures during extended operation.
The intake system uses a 9-inch round air cleaner with a center-bolt cover and washable fiberglass filter media. Exhaust gases exit through a 2-into-1 exhaust system with a catalyst integrated into the header assembly. This configuration contributes to exhaust flow efficiency while maintaining emissions compliance.
Drivetrain and Gear Ratio Engineering
The 2026 Harley-Davidson® Heritage Classic uses a chain-driven primary system with a 34/46 ratio and a belt-driven final drive with a 32/66 ratio. Harley-Davidson® equips the motorcycle with a mechanical assist and conventional wet clutch using a 10-plate design. This clutch arrangement supports smoother engagement under varying load conditions and contributes to controlled power delivery during low-speed operation.
Power transfers through a 6-Speed Cruise Drive® transmission. First gear uses a 9.311 overall ratio to support initial acceleration and low-speed maneuverability. Second gear measures 6.454, third gear measures 4.793, fourth gear measures 3.882, fifth gear measures 3.307, and sixth gear measures 2.79. The ratio spread supports urban riding, highway cruising, and reduced engine speed at sustained interstate speeds.
The belt final drive contributes to smoother driveline operation and lower routine maintenance requirements compared with chain-driven systems. The transmission layout also supports reduced vibration levels during extended highway travel.
Softail® Chassis Construction and Geometry
The frame uses mild-steel tubular construction with a rectangular-section backbone. Harley-Davidson® incorporates stamped, cast, and forged junctions combined with MIG welding techniques. Aluminum forged fender supports reduce weight while maintaining structural support.
The swingarm also uses mild-steel tubular sections with forged axle junctions and a stamped crossmember. A removable belt spacer is integrated into the swingarm structure to simplify maintenance access and drivetrain servicing.
The 2026 Harley-Davidson® Heritage Classic measures 95.1 inches in overall length, 36.6 inches in width, and 54.7 inches in height. The wheelbase measures 64.2 inches. The steering geometry includes a 30-degree rake and 5.5 inches of trail. This geometry contributes to straight-line stability and predictable steering response during highway operation and low-speed cornering.
Lean angle measures 27.4 degrees on both the left and right sides. Ground clearance measures 4.7 inches in static conditions. Laden seat height measures 26.3 inches, while unladen seat height measures 27.2 inches. These dimensions contribute to lower rider reach at stops and improved low-speed balance.
Suspension Calibration and Ride Management
Front suspension duties are handled by a 49 mm telescopic fork using dual-bending valve technology. The fork assembly includes aluminum triple clamps, dual-rate springs, and external fork covers. Front suspension travel measures 5.1 inches.
The rear suspension uses a hidden coil-over monoshock with a free-piston design and 56 mm of stroke. Hydraulic preload adjustment allows suspension tuning based on rider weight, passenger load, or luggage requirements. Rear suspension travel measures 4.4 inches.
The concealed rear suspension preserves the rigid-style cruiser appearance associated with the Softail® platform while providing modern suspension movement and damping control. The preload adjustment system allows the suspension to maintain ride height and handling stability under changing load conditions.
Wheel, Tire, and Brake Specifications
The 2026 Harley-Davidson® Heritage Classic uses black 9-spoke cast aluminum wheels as standard equipment. Front and rear wheel diameters both measure 16 inches, and wheel width measures 3 inches at both ends. Harley-Davidson® also lists optional black tubeless laced wheels with 36 bright spokes in select configurations.
The motorcycle uses Dunlop® Harley-Davidson® Series bias blackwall tires. The front tire specification is 130/90B16 73H BW, while the rear tire specification is 150/80B16 77H BW. The tire dimensions support load-carrying capability, stability during highway travel, and consistent traction characteristics.
The braking system uses a 4-piston fixed front caliper paired with a 2-piston floating rear caliper. The front rotor diameter measures 11.8 inches with a thickness of 0.2 inches. The rear rotor diameter measures 11.5 inches with a thickness of 0.23 inches. Both rotors use a solid uniform-expansion design intended to maintain braking consistency during repeated braking cycles.
Anti-lock Braking System comes standard. The system is designed to reduce wheel lock during aggressive braking or low-traction surface conditions. The 2026 Harley-Davidson® Heritage Classic also includes Cornering Enhanced Anti-lock Braking System functionality, which adjusts braking support during leaned-riding conditions.
Integrated Rider Safety Systems
The 2026 Harley-Davidson® Heritage Classic includes multiple electronic rider-assist systems designed to support traction management and braking stability. Standard Traction Control System functionality monitors rear-wheel behavior during acceleration and intervenes when wheel slip exceeds programmed thresholds.
The motorcycle also includes Drag-torque Slip Control System technology. This system helps reduce rear-wheel instability caused by abrupt throttle closure or aggressive downshifting. Tire Pressure Monitoring System functionality provides tire pressure data through the rider information display.
The Cornering Enhanced Traction Control System and Cornering Drag-torque Slip Control System functions remain active during leaned operation. These systems adjust intervention characteristics based on motorcycle lean angle to support stability while cornering. Electronic Linked Braking and Vehicle Hold Control are not included on the 2026 Harley-Davidson® Heritage Classic.
Electrical Capacity and LED Lighting Systems
Electrical power comes from a sealed maintenance-free absorbed glass mat battery rated at 12V and 17.5Ah with 310 cold cranking amps at 0°F. Charging is managed through a three-phase 48-amp electrical system producing 364 watts at 13 volts and 900 rpm, with a maximum output of 624 watts at 2,000 rpm.
The starting system uses a 1.6 kW electric starter with solenoid shift engagement. Lighting components use LED technology across major systems. The headlamp integrates LED low beam, high beam, and signature position lights. Rear lighting includes an LED buffet tail lamp and LED bullet-style rear lighting components.
Front turn signals use LED bullet indicators, while LED fog lamps provide additional forward illumination. The LED lighting system is intended to improve visibility and reduce electrical load compared with traditional halogen systems.
Instrumentation and Rider Information Display
Instrumentation centers around a 5-inch analog speedometer integrated with a digital information display. The display provides gear position, odometer, fuel level, ride mode information, heated gear status, traction control status, ABS indication, TPMS data, cruise control indication, trip functions, tachometer information, range estimates, and clock functionality.
A USB-C power outlet provides 5V at 2.4 amps for charging compatible external devices. The 2026 Harley-Davidson® Heritage Classic does not include an integrated infotainment system, navigation unit, Bluetooth® connectivity, or speaker system. This configuration emphasizes mechanical operation and rider-focused instrumentation instead of multimedia integration.
Fuel Capacity and Operational Measurements
Fuel capacity measures 5 gallons with a reserve warning level at approximately 1 gallon. Estimated fuel economy is rated at 47 mpg under estimated city and highway conditions. Oil capacity with filter measures 5 quarts. Transmission fluid capacity measures 1 quart, and primary chain case capacity measures 1.25 quarts.
The motorcycle weighs 690 pounds in shipped configuration and 719 pounds in running order. The Gross Vehicle Weight Rating measures 1,160 pounds. The front gross axle weight rating is 450 pounds, while the rear gross axle weight rating is 730 pounds.
Luggage capacity measures 1.6 cubic feet. This storage volume supports short-distance touring use, commuting requirements, and day-trip cargo needs without requiring external storage accessories.
