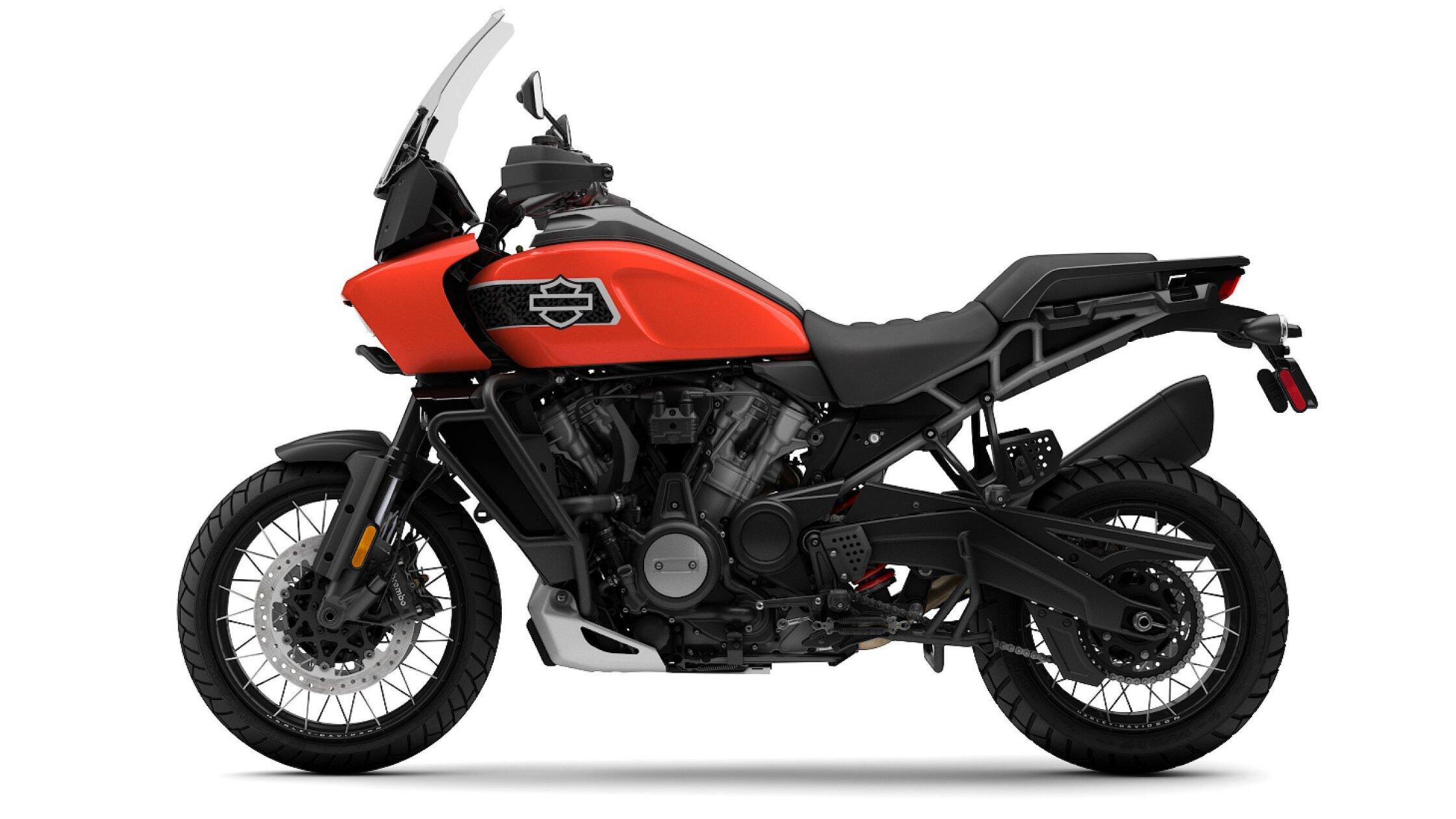

The 2026 Harley-Davidson® Pan America® 1250 Special is an adventure touring motorcycle engineered around the Revolution® Max 1250 powertrain and a technologically advanced chassis platform. It combines high-output performance, electronically managed suspension systems, comprehensive rider safety technologies, and modern connectivity features in a single package. The model also incorporates adaptable ergonomics through multiple seat-height configurations and available Adaptive Ride Height suspension equipment. A strong structural foundation, advanced braking hardware, and integrated electronic rider aids contribute to its broad functional capability.
Engine Performance and Powertrain Engineering
The engine serves as a central component of the 2026 Harley-Davidson® Pan America® 1250 Special’s technical package. Harley-Davidson® equips this model with the Revolution® Max 1250 engine, a liquid-cooled powerplant with a displacement of 76.4 cubic inches, or 1,252 cc. The engine uses a 4.134-inch bore and a 2.846-inch stroke, paired with a 13.0:1 compression ratio. This configuration produces a rated output of 150 horsepower, or 112 kW, at 8,750 rpm. Engine torque measures 94 lb-ft at 6,750 rpm, providing substantial output across the operating range.
Advanced Valve Train Configuration
The Revolution® Max 1250 engine uses a chain-driven double overhead camshaft design. Hydraulic self-adjusting lifters support consistent valve operation while reducing routine adjustment requirements. The engine also incorporates variable valve timing on both the intake and exhaust sides. Four valves per cylinder contribute to airflow management and combustion efficiency.
Fuel Delivery, Intake, and Exhaust Systems
Electronic Sequential Port Fuel Injection manages fuel delivery throughout the operating range. The intake system uses a downdraft arrangement with tuned velocity stacks and washable filter media. This design supports efficient airflow into the combustion chambers. Exhaust gases exit through a 2-into-1-into-1 exhaust system that incorporates a catalyst in the header assembly. A semi-dry sump lubrication system supports engine operation, while oil capacity measures 4.75 quarts and coolant capacity measures 2.32 quarts.
Transmission and Drivetrain Operation
The drivetrain system translates engine output into controlled power delivery through a combination of mechanical and geared components. Harley-Davidson® pairs the Revolution® Max 1250 engine with a 6-speed transmission. A gear-driven primary drive uses a 49/89 ratio, while the final drive uses a chain with a 19/48 ratio. This configuration creates a direct mechanical connection between the powertrain and the rear wheel.
6-speed Gear Ratio Strategy
The transmission uses six distinct overall gear ratios to manage acceleration and cruising performance. First gear carries a ratio of 13.11, followed by 9.687 in second gear and 7.509 in third gear. Fourth gear uses a 6.057 ratio, while fifth gear measures 5.08. Sixth gear carries a ratio of 4.436. The progressive ratio spread allows the motorcycle to transition smoothly through the gearbox while maintaining effective engine operation.
Assist and Slip Clutch Design
The 2026 Harley-Davidson® Pan America® 1250 Special uses a mechanical eight-plate wet clutch. The clutch incorporates assist and slip functionality as part of its design. This arrangement helps manage driveline forces during acceleration and deceleration events. The wet clutch configuration operates within an oil bath, supporting smooth engagement characteristics. The clutch assembly carries a listed specification of 1090N.
Chassis Architecture and Structural Design
The motorcycle’s chassis combines steel and aluminum construction to create a rigid and durable platform. Harley-Davidson® uses a stressed-member high-strength low-alloy steel trellis frame with stamped, cast, and forged junctions. MIG welding joins the primary frame components, while an aluminum forged mid-structure contributes to overall construction. The swingarm uses a one-piece cast aluminum design.
Geometry and Dimensional Foundations
The chassis geometry contributes to the motorcycle’s stability and steering behavior. The 2026 Harley-Davidson® Pan America® 1250 Special uses a 25-degree rake and a matching 25-degree fork angle. Trail measures 4.3 inches, while wheelbase measures 62.4 inches. These dimensions work within the overall chassis layout to establish the motorcycle’s handling characteristics.
Wheel and Tire Configuration
The motorcycle rides on Michelin® Scorcher Adventure radial tires. Front tire specification measures 120/70R19 60V, while the rear tire specification measures 170/60R17 72V. Standard wheels use satin black aluminum cast construction. The front wheel measures 19 inches in diameter and 3 inches in width, while the rear wheel measures 17 inches in diameter and 4.5 inches in width. Optional anodized aluminum tubeless laced wheels are also available.
Electronically Managed Suspension Systems
The suspension package combines long-travel components with electronically controlled damping technology. Both front and rear suspension systems provide 7.5 inches of travel. Electronic adjustment functions allow the suspension to respond through semi-active damping control systems. The design supports varying riding conditions while maintaining consistent chassis behavior.
Semi-Active Front Fork Technology
The front suspension uses a 47 mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps support the fork assembly. The electronically managed system continuously controls damping characteristics through its integrated design. This arrangement allows the front suspension to operate within a broad range of riding situations.
Rear Suspension and Adaptive Ride Height Availability
The rear suspension uses a linkage-mounted monoshock with automatic electronic preload control. Semi-active compression and rebound damping are integrated into the rear shock design. Available Adaptive Ride Height equipment adds additional functionality to both the front and rear suspension systems. Static ground clearance measures 6.9 inches without Adaptive Ride Height and 8.1 inches with Adaptive Ride Height. Dynamic ground clearance with optional suspension equipment measures 6.9 inches.
Braking Performance and Control Technologies
The braking system combines substantial hardware with a wide range of electronic rider assistance features. Harley-Davidson® equips the 2026 Harley-Davidson® Pan America® 1250 Special with dual front brake rotors and a single rear rotor. Anti-Lock Braking System functionality comes standard. Electronic braking technologies further expand control capabilities across different riding environments.
Front and Rear Brake Components
The front braking system uses radially mounted monoblock four-piston calipers. Dual floating tower-mounted rotors measure 12.6 inches in diameter and 0.17 inches in thickness. The rear brake uses a floating single-piston caliper and a solid, uniform expansion rotor. Rear rotor diameter measures 11 inches, while the thickness measures 0.2 inches. This hardware configuration provides the foundation for the motorcycle’s braking performance.
Integrated Rider Safety Enhancements
The motorcycle includes an Anti-Lock Braking System, Electronic Linked Braking, Traction Control System, Drag-Torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation. These systems work together to support rider control and vehicle management. The Tire Pressure Monitoring System integrates with the display system to provide monitoring capability. Vehicle Hold Control assists during stationary situations, while traction and slip control systems manage available grip. Wheel Lift Mitigation adds another layer of electronic intervention capability.
Cornering-Enhanced Rider Assistance
The 2026 Harley-Davidson® Pan America® 1250 Special also includes cornering-enhanced rider safety technologies. These systems include Cornering Enhanced Anti-Lock Brake System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. Enhanced Lift Mitigation is also included within the cornering safety package.
Electrical Systems, Lighting, and Rider Information
The motorcycle integrates a modern electrical system with advanced lighting and rider information technologies. A sealed maintenance-free absorbed glass mat battery provides 12-volt power with a capacity of 17.5Ah and 310 CCA at 0°F. Charging duties are handled by a three-phase 45-amp system. Output reaches 390 watts at 13 volts and 1,300 rpm, with maximum power reaching 585 watts at 13 volts and 2,500 rpm. Starting functions use a 0.9 kW electric system with direct-drive starter motor engagement.
Adaptive LED Lighting Equipment
Lighting equipment consists entirely of LED technology. The motorcycle uses a Daymaker® Adaptive LED headlamp with a six-segment LED banking lamp. An all-LED tail and stop lamp incorporates signature tail lighting. Front and rear turn signals use LED Bullet Turn Signals. This lighting package combines visibility-focused equipment with integrated electronic functionality. Each lighting component forms part of the motorcycle’s standard equipment package.
TFT Display and Instrument Functions
A 6.8-inch TFT display serves as the motorcycle’s primary rider interface. The screen provides speedometer, gear position, odometer, fuel level, clock, trip information, ambient temperature, low-temperature alerts, side stand alerts, tip-over alerts, cruise information, range data, and tachometer indication. Bluetooth® capability allows phone pairing for access to phone calls, music, and navigation through the H-D App. The touchscreen display uses a color TFT format. Its broad range of information functions supports everyday operation and trip management.
Connectivity and Charging Features
Bluetooth® functionality supports phone and media connectivity. Hands-free mobile phone capability comes standard, and headset functionality supports rider and passenger intercom operation. Navigation functions operate through the H-D Mobile App using Bluetooth® connectivity. USB-C charging capability supports both device charging and instrument updates. The motorcycle also includes a USB-C Type power outlet with 5V output at 2.4 amps.
Dimensions, Capacity, and Touring Functionality
The 2026 Harley-Davidson® Pan America® 1250 Special combines substantial dimensions with practical capacity specifications. Overall length measures 89.4 inches, while width measures 38.4 inches, and height measures 59.4 inches. Fuel capacity measures 5.6 gallons, supported by a 1-gallon reserve fuel capacity warning threshold. Estimated fuel economy is rated at 46 mpg.
Adjustable Ergonomics and Rider Accommodation
The motorcycle provides multiple seat-height configurations. Laden seat height measures 31.1 inches in the low position and 32 inches in the high position. With optional Adaptive Ride Height suspension, laden seat height changes to 30.4 inches in the low position and 31.4 inches in the high position. Unladen seat height measures 33.4 inches in the low position and 34.4 inches in the high position. Unladen height with optional Adaptive Ride Height measures 32.7 inches and 33.7 inches, respectively.
Weight Specifications and Capacity Ratings
Weight as shipped measures 542 pounds, while weight in running order measures 578 pounds. Gross Vehicle Weight Rating is listed at 1,003 pounds. Gross Axle Weight Rating measures 399 pounds at the front and 665 pounds at the rear. These figures define the motorcycle’s primary weight and load specifications.
