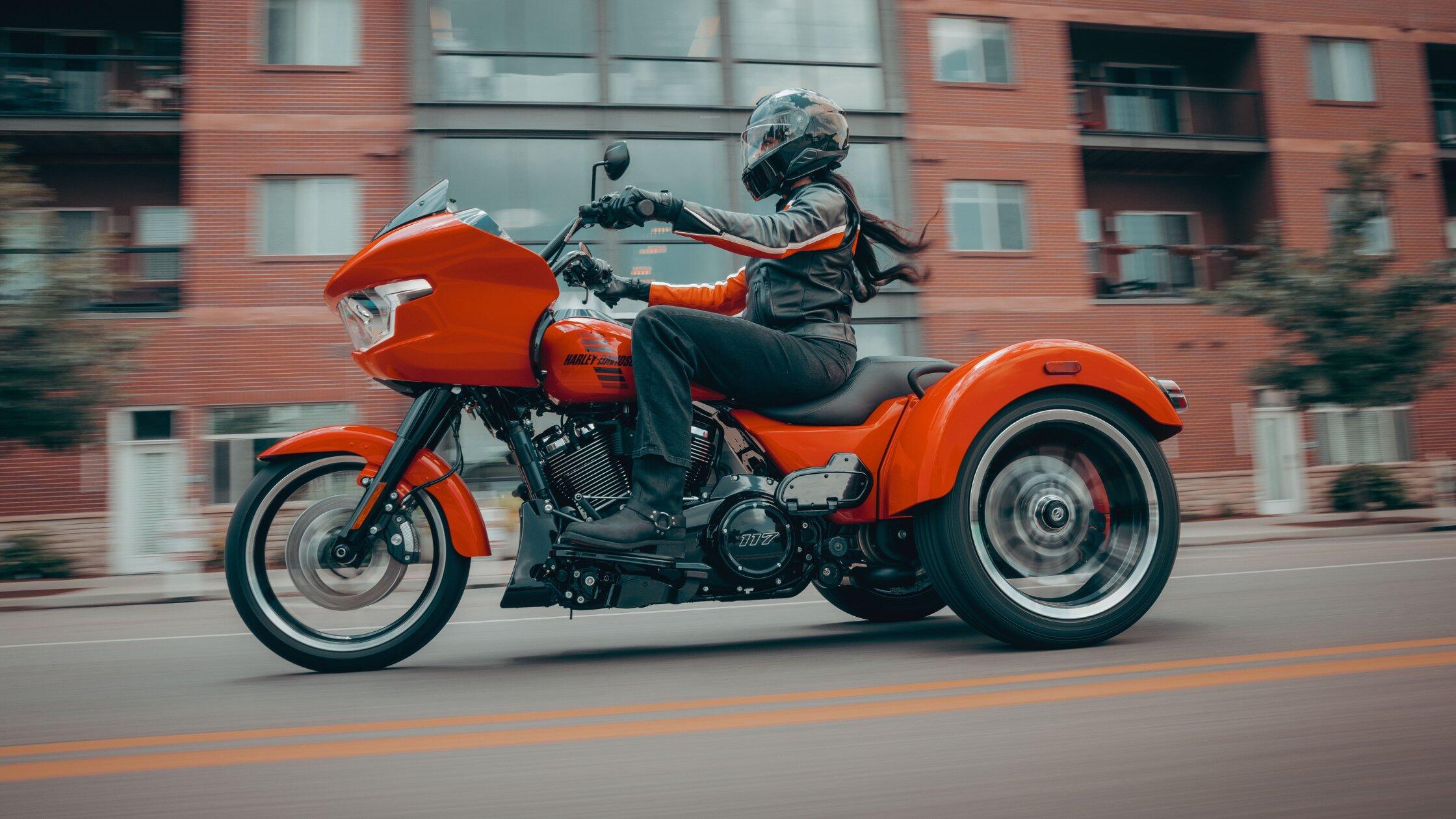

The 2026 Harley-Davidson® Road Glide® 3 is a three-wheel touring model engineered to combine long-distance capability with advanced powertrain technology, integrated rider assistance systems, and modern connectivity features. Built around the Milwaukee-Eight® VVT 117 engine, this model delivers substantial torque and horsepower while supporting comfortable highway travel and confident low-speed maneuverability. Its chassis design, suspension components, braking systems, and electronic technologies work together to create a touring platform focused on stability, control, and rider convenience. The 2026 Harley-Davidson® Road Glide® 3 also incorporates a large infotainment display, embedded navigation capabilities, and multiple rider safety enhancements that contribute to its overall functionality.
Engine Performance and Powertrain Engineering
The powertrain serves as one of the defining elements of the 2026 Harley-Davidson® Road Glide® 3. Harley-Davidson® equips this model with a large-displacement V-twin engine designed to provide strong torque output across a broad operating range. The engine incorporates variable valve timing technology and modern fuel delivery systems that support consistent performance and responsive operation. Several supporting systems, including the lubrication, intake, and exhaust components, contribute to the engine's overall capability.
Milwaukee-Eight® VVT 117 Engine Design
The 2026 Harley-Davidson® Road Glide® 3 uses the Milwaukee-Eight® VVT 117 engine, which displaces 117 cubic inches, or 1,923 cubic centimeters. The engine features a bore of 4.075 inches and a stroke of 4.5 inches, creating a large-capacity configuration intended to deliver substantial low-end and mid-range performance. A compression ratio of 10.3:1 supports efficient combustion and complements the engine's variable valve timing system. The valvetrain utilizes pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder.
Fuel Delivery and Air Management
Electronic Sequential Port Fuel Injection manages fuel delivery throughout the operating range. This system meters fuel precisely and helps maintain consistent engine response under varying riding conditions. Intake air passes through a washable paper air cleaner designed to support airflow while filtering contaminants before they enter the engine. The combination of electronic fuel management and filtered air intake contributes to efficient combustion and dependable operation.
Output Characteristics and Exhaust System
The Milwaukee-Eight® VVT 117 engine produces 129 ft-lb of torque at 3,250 rpm and delivers 105 horsepower, or 78 kW, at 4,600 rpm. This output profile emphasizes strong pulling power at lower engine speeds while maintaining substantial performance throughout the rev range. A 2-1-2 dual exhaust system manages exhaust flow and complements the engine's operating characteristics. The engine also uses a pressurized dry-sump lubrication system that supports oil management during extended riding sessions.
Drivetrain and Transmission Systems
The drivetrain of the 2026 Harley-Davidson® Road Glide® 3 transfers power from the engine to the rear wheels through a combination of mechanical systems engineered for durability and smooth operation. Harley-Davidson® integrates a 6-speed transmission, chain-driven primary system, belt final drive, and assist-and-slip clutch into a cohesive package. These components support efficient power delivery while enhancing rider control during acceleration, cruising, and low-speed maneuvering.
6-speed Cruise Drive® with Reverse
The 2026 Harley-Davidson® Road Glide® 3 features a 6-Speed Cruise Drive® transmission equipped with reverse. The transmission utilizes six forward gear ratios that progress from an overall first-gear ratio of 10.534 to an overall sixth-gear ratio of 3.0. This range allows the engine to operate efficiently during both acceleration and highway cruising. The reverse system provides additional maneuverability when parking or repositioning the vehicle. This feature can be particularly useful when handling a touring trike that weighs more than 1,100 pounds in running order.
Assist and Slip Clutch Functionality
A mechanically actuated 10-plate wet Assist & Slip clutch manages the connection between the engine and transmission. The assist function helps reduce clutch effort while maintaining positive engagement characteristics. The slip function assists in managing drivetrain forces during deceleration and downshifting. This design supports smoother operation across varying riding conditions and complements the touring nature of the vehicle.
Primary and Final Drive Configuration
Power first passes through a chain-driven primary system that uses a 34/46 ratio arrangement. After moving through the transmission, power reaches the final drive through a belt system with a 30/70 ratio. This combination balances durability with smooth operation and reflects Harley-Davidson®'s established drivetrain design philosophy. The drivetrain package works with the engine's torque characteristics to provide consistent power delivery.
Chassis Design and Ride Control
The chassis architecture of the 2026 Harley-Davidson® Road Glide® 3 provides the structural foundation for the vehicle's handling, stability, and rider comfort. Frame construction, steering geometry, wheel specifications, and suspension components all influence how the vehicle behaves across a range of riding environments. Harley-Davidson® designed these systems to support the weight, dimensions, and touring requirements of a three-wheel platform.
Frame Construction and Steering Geometry
The frame utilizes a mild steel square-section backbone structure with twin down-tubes. This design provides the strength necessary to support the vehicle's touring mission and overall weight capacity. Steering geometry includes a 26-degree rake, a 32-degree fork angle, and 3.8 inches of trail. The wheelbase measures 67.7 inches, contributing to directional stability and overall balance.
Front and Rear Suspension Components
Front suspension duties are handled by a 49 mm dual bending valve fork that provides 4.6 inches of travel. At the rear, the 2026 Harley-Davidson® Road Glide® 3 utilizes a hand-adjustable emulsion suspension system with 3.5 inches of travel. The rear suspension allows riders to adjust settings according to load requirements and riding preferences. Suspension travel helps maintain tire contact with the road surface while supporting ride comfort.
Wheel and Tire Specifications
The 2026 Harley-Davidson® Road Glide® 3 rides on Gloss Black/Machined cast aluminum five-spoke wheels. The front wheel measures 19 inches in diameter and 3.5 inches in width, while the rear wheels measure 18 inches in diameter and 7 inches in width. Tire fitment includes a Dunlop® Harley-Davidson® Series MT 130/60B19 M/C 61H front tire and P215/45R18 83T rear tires. These dimensions support the vehicle's handling objectives and touring-oriented design.
Braking Performance and Rider Assistance Technologies
The 2026 Harley-Davidson® Road Glide® 3 combines substantial braking hardware with a broad range of electronic rider assistance systems. These technologies support braking performance, traction management, and vehicle stability under changing riding conditions. Harley-Davidson® includes both standard and cornering-enhanced systems as part of the model's safety equipment package.
Brake Hardware Configuration
The front braking system utilizes dual floating rotors measuring 11.8 inches in diameter and 0.197 inches in thickness. Braking force is supplied by fixed four-piston front calipers featuring 32 mm pistons. At the rear, an 11.8-inch fixed rotor works with a floating 36 mm piston integrated park brake system.
Core Rider Safety Systems
The 2026 Harley-Davidson® Road Glide® 3 includes Electronic Linked Braking, Traction Control System, and Drag-torque Slip Control System technologies. These systems help manage braking force and traction under varying road conditions. Electronic Linked Braking coordinates braking inputs to improve overall control. Traction Control System functionality assists with maintaining grip during acceleration. Drag-torque Slip Control System technology helps manage rear-wheel behavior during deceleration and downshifting.
Cornering-Enhanced Safety Technologies
Harley-Davidson® also equips the 2026 Harley-Davidson® Road Glide® 3 with Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System technologies. These systems expand the functionality of the standard rider safety package by incorporating cornering considerations into vehicle control strategies. Their purpose is to support rider confidence during changing road and riding conditions.
Infotainment, Connectivity, and Electronic Systems
Technology plays a major role in the 2026 Harley-Davidson® Road Glide® 3 experience. The vehicle integrates navigation, communication, entertainment, instrumentation, and connectivity functions into a centralized electronic platform. These systems provide access to vehicle information while supporting rider convenience during daily operation and long-distance touring.
Skyline™ OS Display System
The infotainment platform operates through Skyline™ OS and features a 12.3-inch full-color TFT display. Digital gauges are integrated directly within the screen, reducing the need for separate instrumentation. The display also provides access to vehicle information functions that include air temperature, oil pressure, and Engine Idle Temperature Management System information. The large screen size allows information to be presented clearly and efficiently.
Audio and Communication Features
The audio system includes two 5.25-inch speakers powered by 50 watts per channel. Standard AM and FM radio functionality provides additional entertainment options. Hands-free mobile phone connectivity is supported through Bluetooth® integration. Bluetooth® also supports phone, media player, and headset functionality. These systems help riders remain connected while managing communication and entertainment features through the infotainment platform.
Navigation and Device Integration
The 2026 Harley-Davidson® Road Glide® 3 includes an embedded navigation system that can provide traffic and weather information through a Wi-Fi hotspot connection, where applicable. Apple CarPlay® compatibility supports both wireless and wired connectivity. USB media support accommodates flash drives and MP3 playback through compatible connections. A 15-watt USB-C accessory power port located in the media storage box provides convenient charging capability.
Touring Capability and Functional Equipment
The 2026 Harley-Davidson® Road Glide® 3 incorporates several practical features that support long-distance travel and everyday usability. Vehicle dimensions, storage capacity, fuel capacity, electrical systems, and lighting equipment all contribute to its touring functionality. Harley-Davidson® designed these components to support rider comfort, convenience, and operational efficiency.
Dimensions, Capacity, and Storage
The 2026 Harley-Davidson® Road Glide® 3 measures 103 inches in length, 57.5 inches in width, and 51.4 inches in overall height. Laden seat height measures 26.5 inches, while unladen seat height is 27.9 inches. The vehicle provides 5.5 inches of static ground clearance and carries a gross vehicle weight rating of 1,700 pounds. Luggage capacity totals 2 cubic feet, providing dedicated storage space for travel essentials.
Fuel and Operating Characteristics
A six-gallon fuel tank supports extended travel between fuel stops. The fuel injection system incorporates a warning light that activates with approximately one gallon of reserve fuel remaining. Harley-Davidson® estimates fuel economy at 39 mpg. Engine oil capacity is five quarts with filter, while the transmission and primary chain case each hold 1.1 quarts of fluid. These operating capacities support routine maintenance and long-distance travel requirements.
Electrical Equipment and Convenience Features
A sealed maintenance-free 12-volt battery rated at 28 amp-hours and 405 cold cranking amps supplies electrical power. Charging duties are handled by a three-phase 48-amp system capable of producing up to 625 watts. LED lighting is used for the headlamp, tail and stop lamp, front signal lights, and rear turn signals. The vehicle also includes an electric reverse system actuated through handlebar-mounted controls.
